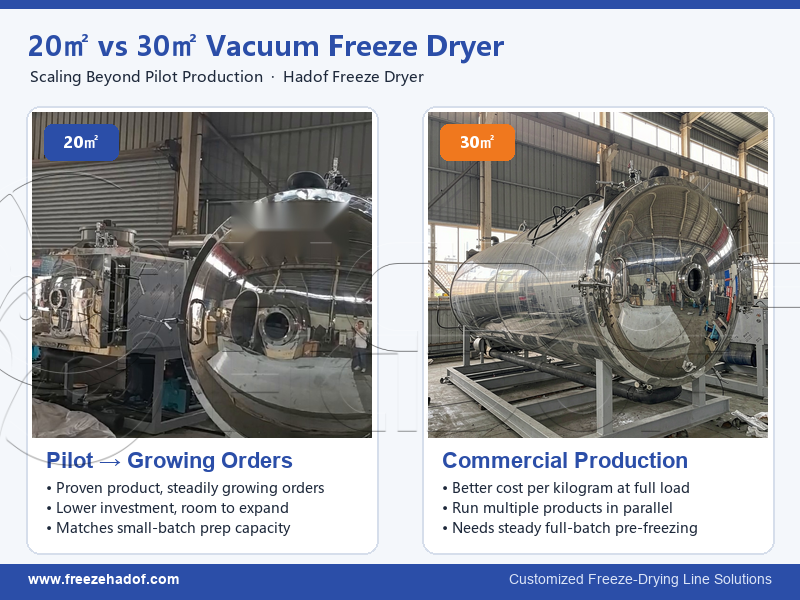

When your freeze-dried product starts winning repeat orders, the pilot machine that carried you through product development suddenly becomes the bottleneck. Batches run back-to-back, orders queue up, and every extra kilogram of demand exposes a new constraint. At this stage, many producers compare a 20㎡ machine with a 30㎡ vacuum freeze drying machine — and the smartest way to make that comparison is to look at how each one fits your daily production rhythm, not just the shelf area on the spec sheet.
Why “One Size Up” Is Not a Scaling Strategy
Pilot production forgives a lot. One operator can watch a batch, adjust tray loading by hand, and accept a slower cycle because order volumes stay small. Commercial production removes that forgiveness. Three things change immediately:
- Batch cadence starts to matter more than batch size.A machine that finishes predictable cycles day after day outperforms a larger chamber that sits half-loaded waiting for material.
- Loading discipline becomes a quality issue.Loose habits that were tolerable at 10㎡ now show up as uneven moisture between shelves and rejected batches.
- Condenser and vacuum load grow with every added shelf.More tray area means more water vapor to capture per cycle, so the supporting systems must keep pace with the chamber.
This is why scaling well has less to do with chamber size and more to do with system matching.
What a 20㎡ Machine Does Best
A 20㎡ freeze drying machine fits the stage where orders are growing but not yet stable at full capacity. It lets you industrialize the process — fixed trays, documented loading weights, repeatable cycle recipes — while keeping capital and floor-space commitments under control. If your upstream washing, cutting, and pre-freezing steps still prepare material in small lots, a 20㎡ chamber matches that rhythm instead of sitting idle.
What Changes When You Move to 30㎡
Stepping up to a 30㎡ vacuum freeze dryer changes the production math in three ways:
- Lower cost per kilogram.The fixed work in every batch — vacuum pull-down, defrost, cleaning — spreads across more finished product, which improves unit economics at full utilization.
- Room for product mix.Extra shelf area lets you run different cuts or products in parallel instead of delaying one order to finish another.
- Fewer changeovers per week.Larger batches mean fewer cycles, less thermal cycling of the equipment, and cleaner scheduling for the packaging line.
The requirement comes with it: a 30㎡ chamber needs a steady supply of full trays. If pre-freezing or tray transfer cannot keep up, the extra shelf area stays empty — and empty shelf area is the most expensive kind.
Look at the Line, Not Just the Chamber
The best comparison walks through one full production day. Can the pre-freezer deliver a complete batch of trays before the dryer reaches setpoint? Do trays move from freezer to shelves at a pace that matches the cycle? Does packaging clear each finished batch before it absorbs moisture from the air? When those answers hold up, both machines perform; when they do not, even a large chamber underperforms.
This is also the point where many producers realize the real choice sits between a single machine and an integrated system. A 50kg batch freeze dried food production line pairs the drying chamber with pre-freezing, conveying, and packing sized to the same rhythm, while a general-purpose industrial freeze dryer machine covers producers who want one robust chamber and plan to build the line step by step.
Scale the System, Not Just the Number
The 20㎡ vs 30㎡ question answers itself once you size the chamber to your daily material flow: choose the machine your prep line, pre-freezer, and packaging can actually feed and clear. Hadof designs customized freeze-drying lines around each client’s raw materials, production output, and factory space. If you need a tailored solution, visit the Hadof freeze dryer homepage: https://www.freezehadof.com/
